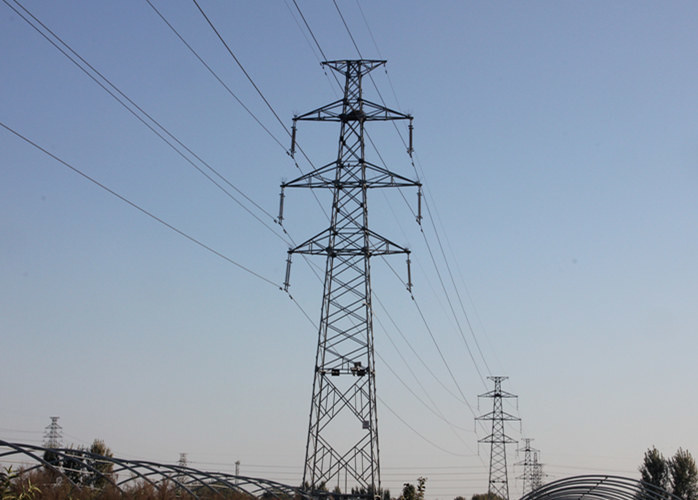

High Tension Steel Transmission Tower , 33kv Transmission Line Towers ISO Standarded

ISO Standarded Angle Transmission Steel Tower Electric Power Lattice Steel Tower

1.  Production decription

Related information of the transmission steel tower.

Design code :  ANSI10-97 - Design of latticed steel transmission structures

                       IEC 60826-Design criteria of overhead lines

                       DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead

                      Transmission Line

Welding:         AWSD1.1-American welding society D1.1 structural welding code -steel

Galvanization: ASTM A123-Standards specification for zinc (hot dip galvanized)

                      GB/T13912 Metal coating ,technical requirement and test mothod for hot dip galvanizrd metal parts.

Material :        High strength low alloy structural steel: Q420B which is equivalent to ASTM A572 Gr60

                      High strength low alloy structural steels: Q355B which is equivalent to ASTM A572 Gr50 or S355JR

                      Carbon Structural Steel: Q235B which is equivalent  to  ASTM A36 or S235JR

Advantage

Qingdao Liangta Steel Structure Co.Ltd is a professional manufacturer in transmission steel tower from the year 2009.

 1.  We make sure every your requirement will be answered in 24 hours.

2.   Customized design is available.our engineer can design drawings as your requirment.

3.    After sales service. We can help to install the transmission tower .If needed ,we even can supply an engineer to the site.

 As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

Catalogue of the transmission line towers as followings :

Test report of transmission steel towers.

2.   Product capacity

We have 5 production line for manufacturing transmission steel towers ,We can supply 2000 tons steel towers

per month .And we have enough room to place more transmisson steel towers production line if needed .

​

​3.  Technical support

Our engineer and drawer has lots of designing ,lofting experience of transmission steel towers .

Which we can supply a overall solution of all the towers .

4.   Quality control

We have very strict quality control in every tranmsission steel towers .

                    Material incoming control:chemical and physical test

                                   Zinc coating thinknes inspection

We usually has two ways of trial assembly for tranmsmission steel towers : trial assembly before galvanzation

and after galvanization

6.   Hot dip galvanization and painting

7.  Package and delivery

Package we usually do as our clients requirment .Usually for transmission steel towers,we fixed angle steel by

steel wire to bundles and use special material to protect zinc .

For fasteners ,we use bucket ,bag or box.

8.  Company introduction

Qingdao Liangta Steel Structure Co., Ltd. ,established in year 2009,is a leading professional manufacturer in the field of transmission steel  towers (the voltage up to 1000kv), telecommunication towers, monopoles, substation structures and rooftop towers. We also supply steel profile products as per customers 'requirement.

The factory located in Jiaozhou bay of Qingdao, covered an area of over 60,000 square meters with an annual production capacity 40,000 tons.

Location:
Less than one hour drive from Qingdao International Airport, 1 hour drive from Qingdao sea port.

• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007

We also have many experiences of foreign projects, like Philippines, Myanmar, Iraq, Mauritania and so on.

Welcome to contact us ,we make sure your every question will be answered in time .

9.  Product catalogue:
