Product Details:
Payment & Shipping Terms:
|
| Material: | Q345B And Q235B | Surface: | Hot Dip Galvanization |
|---|---|---|---|
| Structure: | Lattice Angle Steel Tower | Usage: | Overhead Power Line |
| Zinc Thickness: | Min Average Zinc Thickness Is Not Less Than 86um | Port: | Qingdao Port |
| High Light: | single circuit transmission tower,high tension electrical towers |
||

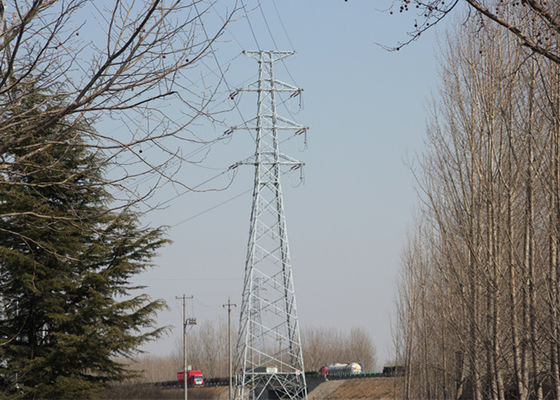

Double Circuit Electric Power Pylon ,High Voltage Transmission Line Towers
1. Production decription
Qingdao Liangta Steel Structure is in the field of electric power tower manufacturing since 2009.
During these years ,we learn and move step by step ,and improve a lots .If possible ,We want to move together with u lately .
Catalogue of the transmission line towers as followings :
Prameters of the towers as following:
| l |
Yield Strength (MPa) |
standard | Steel name | Metallic element | Content |
|
Q345B |
345 for Thickness <=16 |
GB/T 1591-2008 |
High strength low alloy structural steels |
C | ≤0.20 |
| Mn | ≤1.70 | ||||
|
(ASTM A572, EN10025 S355N) |
Si | ≤0.50 | |||
| Q235B | 235 | GB/T 700-2006 | Carbon structural steels | P | ≤0.035 |
|
(ASTM A36 , EN10025 S235JR) |
S | ≤0.035 |
| Hot dip galvanizing | Standard | Steel thickness/mm |
Mean coating thickness/μm |
Metallic element | Content |
|
Pole shafts,cross arms&bolted on accessories |
ASTM A123/ A123M-15 AS/ NZS 4680 |
>6 | 85 | Mn | 0.25%-0.40% |
| <3-6 | 70 | ||||
| 1.5-3 | 55 | Cu | <0.15% | ||
| <1.5 | 55 | ||||
| Bolts,nuts&washers | GB/T 5267.3-2008 | _____ | ≥ 54 | P | <0.025% |
| (ISO 10684-2004) | |||||
| Foundation bolts |
ASTM A153/ A153M-09 |
_____ | ≥ 54 | S | < |
2. Product capacity
We have 5 production line for manufacturing electric power tower ,We can supply 3000 tons angle steel towers
per month .And we have enough room to place more transmisson steel towers production line if needed .
| Numbers of angle production line | 5 |
| production capacity per month | 2000 tons |
3. Technical support
Our engineer and drawer has lots of designing ,lofting experience of electric power tower .
Which we can supply a overall solution of all the towers .
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality control
We have very strict quality control in every electric power tower.
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
We usually has two ways of trial assembly for tranmsmission steel towers : trial assembly before galvanzation
and after galvanization
6. Hot dip galvanization and painting
7. Package and delivery
Package we usually do as our clients requirment .Usually for transmission steel towers,we fixed angle steel by
steel wire to bundles and use special material to protect zinc .
For fasteners ,we use bucket ,bag or box.
8. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year 2009,is a leading professional manufacturer in the field of transmission steel towers (the voltage up to 1000kv), telecommunication towers, monopoles, substation structures and rooftop towers. We also supply steel profile products as per customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of over 60,000 square meters with an annual production capacity 40,000 tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be answered in time .
9. Product catalogue:
