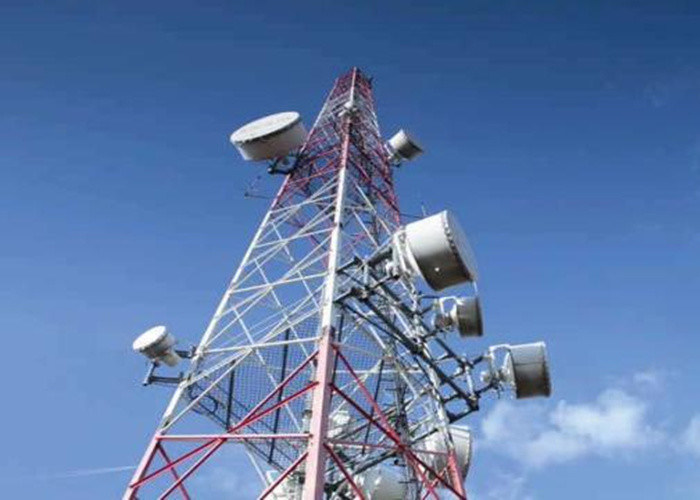

80m Triangle Telecom Steel Tower , Galvanized / Painted Communication Antenna Tower

80m Triangle Lattice Telecom Steel Tower Galvanized and Painted Communication Antenna Tower

1.  Production description

This kind telecom steel  tower is popular used in different places with customized design.

We can manufacture all types of telecom steel tower as per customer's requirements with the production

capacity 3000 tons per month.

DesignStandard :               BS 8100 or EIA/TIA -222G

Antenna Design Loading:   As requirement

Wind speed :                     As your requirement  .Usually from 60KM/H to 300KM/H

Surface treament:               Hot dip Galvanization acoording to BS729 or ASTM 123 .And also can be painted as requirement.

Ladder:                             External ladder(light duty tower) or inside ladders(medium and heavy duty tower ).

                                         For pole ,usually we use step bolts.

Platforms :                         Rest platform or working platform

Material used :                  Q345B/A572, Gr50 /S355JR minimum yield strength >=345MPA;

                                         Q235B/A36/S235JR, minimum yield strength>=235MPA

2.  Product capacity

We have 5 production line for this telecom steel tower manufacturing ,We also

have enough room to add equipment if needed.

​

​3.  Technical support

Our Engineer can design telecom steel towers according to design code TIA-222G.

Just tell us your requirement about wind speed ,antenna quantity ,platform quantity and ligthing rod height .

Then we will supply detailed drawings .

4.  Quality control

                          Material incoming control:chemical and physical test

                                       Zinc coating thinknes inspection

We usually has two ways of trial assembly: trial assembly before galvanzation and after galvanization

6.  Hot dip galvanization and painting

7.  Package and delivery

8.  Company introduction

Qingdao Liangta Steel Structure Co., Ltd. ,established in year 2005,is a leading professional manufacturer in the field of transmission line towers (the voltage up to 500kv), telecommunication towers, monopoles, substation structures and rooftop towers. We also supply steel profile products as per customers 'requirement.

The factory located in Jiaozhou bay of Qingdao, covered an area of over 60,000 square meters with an annual production capacity 60,000 tons.

Location:
Less than one hour drive from Qingdao International Airport, 1 hour drive from Qingdao sea port.

• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007

We also have many experiences of foreign projects, like Philippines, Myanmar, Iraq, Mauritania and so on.

Welcome to contact us ,we make sure your every question will be answered in time .

9.  Product catalogue:
